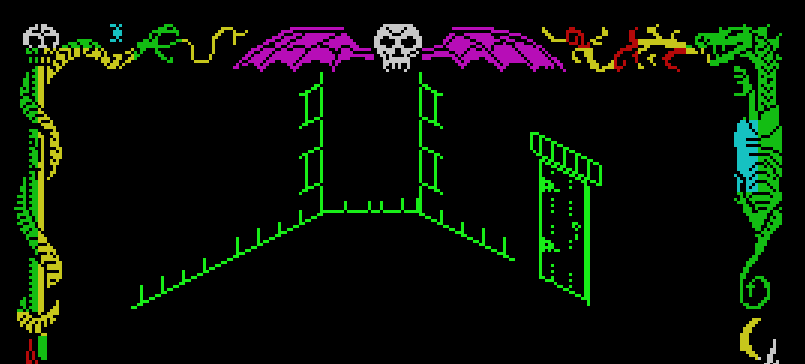

The graphics that make up the joins between walls and floors, that provide the 3D perspective effect for the rooms.
Flipped/mirrored versions of the side and corner graphics are generated when Maroc enters each new room (though the corner wall vertical sections are needed for every room).
BACK WALL/FLOOR SECTION
|
||||
| 40392 | DEFB %00000001 | Graphic properties | ||
| 40393 | DEFB 4 | Graphic consists of 4 tiles | ||
| 40394 | DEFB 240 | Horizontal (X axis) pixel offset (-16 pixels) | ||
| 40395 | DEFB 253 | Vertical (Y axis) pixel offset (-3 pixels) | ||
| 40396 | DEFB 4 | Graphic consists of 4 bytes | ||
| 40397 | DEFB 1,1,1,254 |  |
||
| 40401 | DEFB 248 | Horizontal (X axis) pixel offset (-8 pixels) | ||
| 40402 | DEFB 253 | Vertical (Y axis) pixel offset (-3 pixels) | ||
| 40403 | DEFB 4 | Graphic consists of 4 bytes | ||
| 40404 | DEFB 1,1,1,254 |  |
||
| 40408 | DEFB 0 | Horizontal (X axis) pixel offset (0 pixels) | ||
| 40409 | DEFB 253 | Vertical (Y axis) pixel offset (-3 pixels) | ||
| 40410 | DEFB 4 | Graphic consists of 4 bytes | ||
| 40411 | DEFB 16,16,16,239 |  |
||
| 40415 | DEFB 8 | Horizontal (X axis) pixel offset (+8 pixels) | ||
| 40416 | DEFB 252 | Vertical (Y axis) pixel offset (-4 pixels) | ||
| 40417 | DEFB 5 | Graphic consists of 5 bytes | ||
| 40418 | DEFB 33,33,33,33,223 |  |
||
|
SIDE WALL/FLOOR SECTION
|
||||
| 40423 | DEFB %00100001 | Graphic properties | ||
| 40424 | DEFB 4 | Graphic consists of 4 tiles | ||
| 40425 | DEFB 240 | Horizontal (X axis) pixel offset (-16 pixels) | ||
| 40426 | DEFB 240 | Vertical (Y axis) pixel offset (-16 pixels) | ||
| 40427 | DEFB 5 | Graphic consists of 5 bytes | ||
| 40428 | DEFB 1,193,49,13,3 |  |
||
| 40433 | DEFB 248 | Horizontal (X axis) pixel offset (-8 pixels) | ||
| 40434 | DEFB 244 | Vertical (Y axis) pixel offset (-12 pixels) | ||
| 40435 | DEFB 5 | Graphic consists of 5 bytes | ||
| 40436 | DEFB 2,194,50,14,3 |  |
||
| 40441 | DEFB 0 | Horizontal (X axis) pixel offset (0 pixels) | ||
| 40442 | DEFB 246 | Vertical (Y axis) pixel offset (-10 pixels) | ||
| 40443 | DEFB 7 | Graphic consists of 7 bytes | ||
| 40444 | DEFB 4,4,4,196,52,12,3 |  |
||
| 40451 | DEFB 8 | Horizontal (X axis) pixel offset (8 pixels) | ||
| 40452 | DEFB 249 | Vertical (Y axis) pixel offset (-7 pixels) | ||
| 40453 | DEFB 8 | Graphic consists of 8 bytes | ||
| 40454 | DEFB 8,8,8,8,200,56,12,3 |  |
||
|
CORNER WALL SECTION
|
||||
| 40462 | DEFB %00100001 | Graphic properties | ||
| 40463 | DEFB 1 | Graphic consists of 1 tile | ||
| 40464 | DEFB 0 | Horizontal (X axis) pixel offset (0 pixels) | ||
| 40465 | DEFB 209 | Vertical (Y axis) pixel offset (-47 pixels) | ||
| 40466 | DEFB 48 | Graphic consists of 48 bytes | ||
| 40467 | DEFB 128,128,128,128,128,96,176,140 |  |
||
| 40475 | DEFB 135,132,132,132,132,132,132,132 | |||
| 40483 | DEFB 100,156,134,129,128,128,128,128 | |||
| 40491 | DEFB 128,128,96,152,134,133,132,132 | |||
| 40499 | DEFB 132,132,132,132,132,132,100,156 | |||
| 40507 | DEFB 134,129,128,128,128,128,128,128 | |||
