AE2C: Graphics - Bat
bat graphic
For information on this creature, see Creatures: Bat
bat original concept graphics

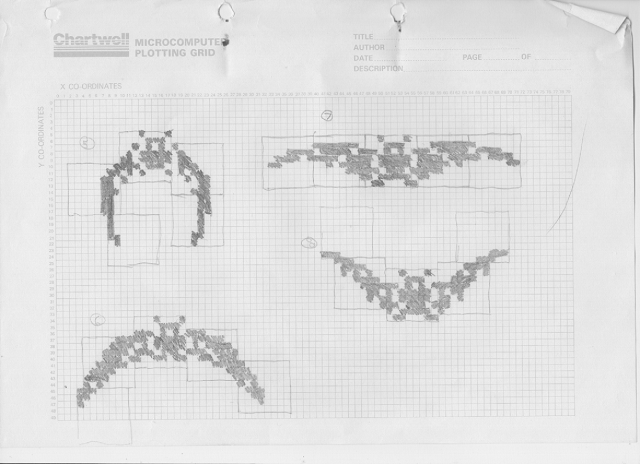

Original design for bat graphics - courtesy of Steve Turner - click for a larger image
AE2C DEFB %10000100 Graphic properties
AE2D DEFB $04 Graphic consists of 4 tiles
Bat - animation frame 1
bat graphic frame 1
AE2E DEFB $F2 Horizontal (X axis) pixel offset (-14 pixels)
AE2F DEFB $F8 Vertical (Y axis) pixel offset (-8 pixels)
AE30 DEFB $09 Graphic consists of 9 bytes
AE31 DEFB $60,$F8,$7E,$23,$3E,$0F,$06,$05 bat-1
AE39 DEFB $03
AE3A DEFB $FA Horizontal (X axis) pixel offset (-6 pixels)
AE3B DEFB $FC Vertical (Y axis) pixel offset (-4 pixels)
AE3C DEFB $09 Graphic consists of 9 bytes
AE3D DEFB $80,$48,$E7,$F5,$EF,$EF,$37,$07 bat-2
AE45 DEFB $08
AE46 DEFB $02 Horizontal (X axis) pixel offset (+2 pixels)
AE47 DEFB $FA Vertical (Y axis) pixel offset (-6 pixels)
AE48 DEFB $0B Graphic consists of 11 bytes
AE49 DEFB $03,$06,$0B,$97,$3B,$7D,$BE,$B8 bat-3
AE51 DEFB $60,$00,$80
AE54 DEFB $0A Horizontal (X axis) pixel offset (+10 pixels)
AE55 DEFB $F8 Vertical (Y axis) pixel offset (-8 pixels)
AE56 DEFB $06 Graphic consists of 6 bytes
AE57 DEFB $30,$F8,$F0,$20,$E0,$80 bat-4
Bat - animation frame 2
bat graphic frame 2
AE5D DEFB $04 Graphic consists of 4 tiles
AE5E DEFB $F0 Horizontal (X axis) pixel offset (-16 pixels)
AE5F DEFB $00 Vertical (Y axis) pixel offset (0 pixels)
AE60 DEFB $05 Graphic consists of 5 bytes
AE61 DEFB $07,$1E,$3D,$7C,$60 bat-5
AE66 DEFB $F8 Horizontal (X axis) pixel offset (-8 pixels)
AE67 DEFB $FD Vertical (Y axis) pixel offset (-3 pixels)
AE68 DEFB $08 Graphic consists of 8 bytes
AE69 DEFB $02,$01,$FD,$BB,$EB,$DD,$41,$02 bat-6
AE71 DEFB $00 Horizontal (X axis) pixel offset (0 pixels)
AE72 DEFB $FD Vertical (Y axis) pixel offset (-3 pixels)
AE73 DEFB $08 Graphic consists of 8 bytes
AE74 DEFB $20,$C0,$5F,$EE,$EB,$DD,$C1,$20 bat-7
AE7C DEFB $08 Horizontal (X axis) pixel offset (+8 pixels)
AE7D DEFB $FF Vertical (Y axis) pixel offset (-1 pixels)
AE7E DEFB $06 Graphic consists of 6 bytes
AE7F DEFB $80,$F0,$BC,$DE,$1F,$03 bat-8
Bat - animation frame 3
bat graphic frame 3
AE85 DEFB $03 Graphic consists of 3 tiles
AE86 DEFB $F8 Horizontal (X axis) pixel offset (-8 pixels)
AE87 DEFB $FD Vertical (Y axis) pixel offset (-3 pixels)
AE88 DEFB $13 Graphic consists of 19 bytes
AE89 DEFB $02,$01,$05,$0B,$1B,$3D,$6A,$D0 bat-9
AE91 DEFB $C0,$C0,$E0,$C0,$C0,$C0,$40,$40
AE99 DEFB $40,$60,$20
AE9C DEFB $00 Horizontal (X axis) pixel offset (0 pixels)
AE9D DEFB $FD Vertical (Y axis) pixel offset (-3 pixels)
AE9E DEFB $13 Graphic consists of 19 bytes
AE9F DEFB $20,$C0,$50,$E8,$EC,$DE,$2B,$05 bat-10
AEA7 DEFB $01,$01,$03,$01,$01,$01,$01,$01
AEAF DEFB $01,$03,$02
AEB2 DEFB $08 Horizontal (X axis) pixel offset (+8 pixels)
AEB3 DEFB $04 Vertical (Y axis) pixel offset (+4 pixels)
AEB4 DEFB $07 Graphic consists of 7 bytes
AEB5 DEFB $80,$80,$80,$80,$80,$80,$80 bat-11
Bat - animation frame 4
bat graphic frame 4
AEBC DEFB $05 Graphic consists of 5 tiles
AEBD DEFB $ED Horizontal (X axis) pixel offset (-19 pixels)
AEBE DEFB $FF Vertical (Y axis) pixel offset (-1 pixel)
AEBF DEFB $03 Graphic consists of 3 bytes
AEC0 DEFB $0F,$3D,$60 bat-12
AEC3 DEFB $F5 Horizontal (X axis) pixel offset (-11 pixels)
AEC4 DEFB $FE Vertical (Y axis) pixel offset (-2 pixels)
AEC5 DEFB $06 Graphic consists of 6 bytes
AEC6 DEFB $FC,$7B,$EF,$5F,$0F,$03 bat-13
AECC DEFB $FD Horizontal (X axis) pixel offset (-3 pixels)
AECD DEFB $FD Vertical (Y axis) pixel offset (-3 pixels)
AECE DEFB $08 Graphic consists of 8 bytes
AECF DEFB $44,$38,$AB,$7D,$7D,$BB,$7D,$C6 bat-14
AED7 DEFB $05 Horizontal (X axis) pixel offset (+5 pixels)
AED8 DEFB $FE Vertical (Y axis) pixel offset (-2 pixels)
AED9 DEFB $06 Graphic consists of 6 bytes
AEDA DEFB $7E,$BD,$EF,$F4,$E0,$80 bat-15
AEE0 DEFB $0D Horizontal (X axis) pixel offset (+13 pixels)
AEE1 DEFB $FF Vertical (Y axis) pixel offset (-1 pixel)
AEE2 DEFB $03 Graphic consists of 3 bytes
AEE3 DEFB $E0,$78,$0C bat-16
