Avalon: Routine at 57139

This section runs through each spell and checks to see if the player has collected it. If so, the text can be printed on the scroll.

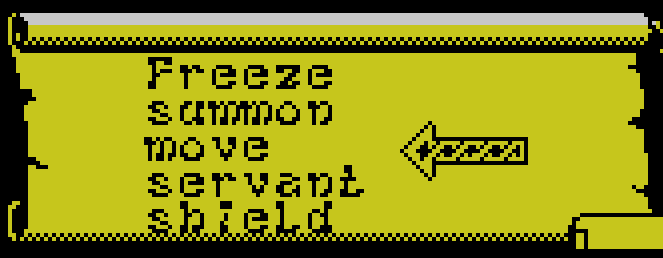

Five spells are always displayed on the scroll in a wraparound vertical scrolling list. If the player has fewer than five spells, one or more will show at least once.

At the start of the game the player only has the 'MOVE' spell, so this appears five times.

Used by the routines at 58945 and 59033.
Checks each spell in the spell index at 28156, to see if Maroc has it. For each spell found (up to 5), prints the spell name text on the scroll, and plays a short sound effect.
57139	LD A,(60130)	Spell list index
57142	LD (60133),A	Copy spell list index into spell list counter
57145	LD DE,(60131)	Address pointer to the start of spell list text at 28156
57149	LD A,1	Scroll text line counter (1-5)
57151	LD (60103),A	Scroll text line counter (1-5)
57154	LD HL,20554	Screen address of top text line of scroll, 3 characters from the left hand side
57157	LD (60126),HL	Put screen display address in temp store for retrieving later
57160	LD B,8	Move address pointer along 8 bytes to get to the first/next spell text (e.g. "MOVE" at 28164)
57162	INC DE
57163	DJNZ 57162
57165	LD (60065),DE	Store spell text address pointer
57169	LD (60068),HL	Store the screen display address
57172	LD A,8	Store length of text string to print - spell texts at 28156 are padded with spaces to make them all 8 characters long
57174	LD (60067),A
57177	CALL 58080	Print the spell text on the scroll
57180	LD HL,(60065)	Retrieve the spell text address pointer - this is now pointing at the data after the spell text, e.g. 28172.
This section runs through each spell and checks to see if the player has collected it. If so, the text can be printed on the scroll. Five spells are always displayed on the scroll in a wraparound vertical scrolling list. If the player has fewer than five spells, one or more will show at least once. At the start of the game the player only has the 'MOVE' spell, so this appears five times.
57183	LD A,(60265)	Total number of spells to check - 27
57186	LD C,A	Total number of spells to check - 27
57187	LD A,(60133)	Spell list counter
57190	CP C	Check if at the end (spell #27)
57191	JR NZ,57200	Check if at the end (spell #27)
57193	LD A,0	If so, reset counter to zero...
57195	LD HL,(60261)	...and return the spell name text address pointer to the start of the list, e.g. 28156.
57198	JR 57201
57200	INC A	If we're not at the end of the list, increment the spell list counter.
57201	LD (60133),A
57204	LD A,(HL)	Get the the first byte (after the spell name).
57205	CP 16	Check if this byte = 16, which indicates the player has collected the spell
57207	JR Z,57215	If so, jump out and print the spell name
57209	LD BC,16	The player hasn't collected this spell, so move the spell text address pointer along 16 bytes to the next spell and repeat the checking loop.
57212	ADD HL,BC
57213	JR 57183
Spell name to print found (Maroc has this spell). First, play a short sound as the player scrolls through the spell list:
57215	OUT (254),A	The 'A' register is 16 from previous routine (bit 4 is set), so it's used here to switch the speaker on
57217	LD A,(60070)	Counter (initialized at 5) which is used to determine an incremental series of 5 tones, while the player holds down a key to scroll through the spell list
57220	CP 0	Counter = 0?
57222	JR Z,57237	If so, skip next routine (this keeps the tone at its highest pitch)
57224	RLA	Take counter and x 2
57225	RLA	5 rotates to shift bits 0-2 of the counter into bits 5-7
57226	RLA
57227	RLA
57228	RLA
57229	AND 224	Filter out unwanted bits 0-4
57231	LD B,A	Store in B to act as a second counter
57232	CALL 56070	Routine that generates a pseudo-random number.
57235	DJNZ 57232	...The output from the CALLed routine isn't used, it's just called multiple times to provide a handy short delay for the speaker toggle effect/sound.
Spell text line print checks
57237	LD A,(60103)	Continue to check the spell index (at 28156) to see which spells Maroc has, and print them on the scroll
57240	CP 5	5 spells can be printed on the scroll. Have they all been done?
57242	JR Z,57275	If so, jump straight to RET at the end of this routine
57244	INC A	Otherwise, increment the scroll text line counter
57245	LD (60103),A	...and re-store.
57248	CP 3	Are we on spell text line number 3?
57250	JR NZ,57261	Are we on spell text line number 3?
57252	LD A,(60133)	If so, this is the spell in the middle of the scroll, that the selection arrow is pointing at
57255	LD (60134),A	So set the 'currently highlighted' spell as this one
57258	LD (60135),HL	...and also store the address pointer to this spell's data (28156).
Prep for printing next line of text:
57261	EX DE,HL	Put the current spell index list address pointer into the DE register, ready for checking/printing any other spells the Maroc might have (from 57157)
57262	LD HL,(60126)	Retrieve the screen display address
57265	LD BC,288	Move the screen display address down 9 pixels ready for the next line of spell text. 288 is 256 (one pixel line down) plus 32 (8 pixel lines down).
57268	ADD HL,BC
57269	LD A,0	Toggle speaker (bit 4) off
57271	OUT (254),A	Toggle speaker (bit 4) off
57273	JR 57157	Keep checking for spells to print
57275	RET	RETurn after 5 spells printed
