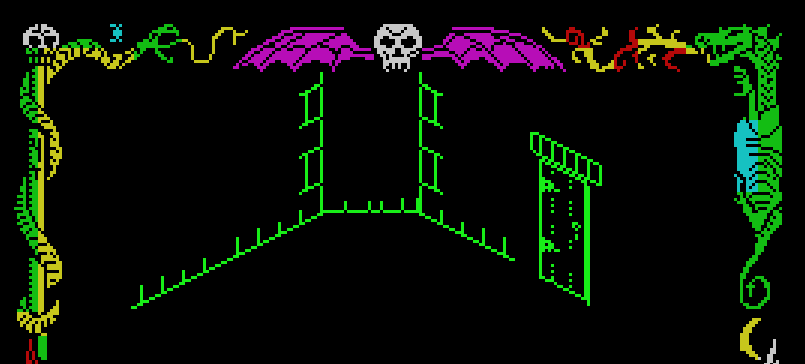

The graphics that make up the joins between walls and floors, that provide the 3D perspective effect for the rooms.
Flipped/mirrored versions of the side and corner graphics are generated when Maroc enters each new room (though the corner wall vertical sections are needed for every room).
BACK WALL/FLOOR SECTION
|
||||
| 9DC8 | DEFB %00000001 | Graphic properties | ||
| 9DC9 | DEFB $04 | Graphic consists of 4 tiles | ||
| 9DCA | DEFB $F0 | Horizontal (X axis) pixel offset (-16 pixels) | ||
| 9DCB | DEFB $FD | Vertical (Y axis) pixel offset (-3 pixels) | ||
| 9DCC | DEFB $04 | Graphic consists of 4 bytes | ||
| 9DCD | DEFB $01,$01,$01,$FE |  |
||
| 9DD1 | DEFB $F8 | Horizontal (X axis) pixel offset (-8 pixels) | ||
| 9DD2 | DEFB $FD | Vertical (Y axis) pixel offset (-3 pixels) | ||
| 9DD3 | DEFB $04 | Graphic consists of 4 bytes | ||
| 9DD4 | DEFB $01,$01,$01,$FE |  |
||
| 9DD8 | DEFB $00 | Horizontal (X axis) pixel offset (0 pixels) | ||
| 9DD9 | DEFB $FD | Vertical (Y axis) pixel offset (-3 pixels) | ||
| 9DDA | DEFB $04 | Graphic consists of 4 bytes | ||
| 9DDB | DEFB $10,$10,$10,$EF |  |
||
| 9DDF | DEFB $08 | Horizontal (X axis) pixel offset (+8 pixels) | ||
| 9DE0 | DEFB $FC | Vertical (Y axis) pixel offset (-4 pixels) | ||
| 9DE1 | DEFB $05 | Graphic consists of 5 bytes | ||
| 9DE2 | DEFB $21,$21,$21,$21,$DF |  |
||
|
SIDE WALL/FLOOR SECTION
|
||||
| 9DE7 | DEFB %00100001 | Graphic properties | ||
| 9DE8 | DEFB $04 | Graphic consists of 4 tiles | ||
| 9DE9 | DEFB $F0 | Horizontal (X axis) pixel offset (-16 pixels) | ||
| 9DEA | DEFB $F0 | Vertical (Y axis) pixel offset (-16 pixels) | ||
| 9DEB | DEFB $05 | Graphic consists of 5 bytes | ||
| 9DEC | DEFB $01,$C1,$31,$0D,$03 |  |
||
| 9DF1 | DEFB $F8 | Horizontal (X axis) pixel offset (-8 pixels) | ||
| 9DF2 | DEFB $F4 | Vertical (Y axis) pixel offset (-12 pixels) | ||
| 9DF3 | DEFB $05 | Graphic consists of 5 bytes | ||
| 9DF4 | DEFB $02,$C2,$32,$0E,$03 |  |
||
| 9DF9 | DEFB $00 | Horizontal (X axis) pixel offset (0 pixels) | ||
| 9DFA | DEFB $F6 | Vertical (Y axis) pixel offset (-10 pixels) | ||
| 9DFB | DEFB $07 | Graphic consists of 7 bytes | ||
| 9DFC | DEFB $04,$04,$04,$C4,$34,$0C,$03 |  |
||
| 9E03 | DEFB $08 | Horizontal (X axis) pixel offset (8 pixels) | ||
| 9E04 | DEFB $F9 | Vertical (Y axis) pixel offset (-7 pixels) | ||
| 9E05 | DEFB $08 | Graphic consists of 8 bytes | ||
| 9E06 | DEFB $08,$08,$08,$08,$C8,$38,$0C,$03 |  |
||
|
CORNER WALL SECTION
|
||||
| 9E0E | DEFB %00100001 | Graphic properties | ||
| 9E0F | DEFB $01 | Graphic consists of 1 tile | ||
| 9E10 | DEFB $00 | Horizontal (X axis) pixel offset (0 pixels) | ||
| 9E11 | DEFB $D1 | Vertical (Y axis) pixel offset (-47 pixels) | ||
| 9E12 | DEFB $30 | Graphic consists of 48 bytes | ||
| 9E13 | DEFB $80,$80,$80,$80,$80,$60,$B0,$8C |  |
||
| 9E1B | DEFB $87,$84,$84,$84,$84,$84,$84,$84 | |||
| 9E23 | DEFB $64,$9C,$86,$81,$80,$80,$80,$80 | |||
| 9E2B | DEFB $80,$80,$60,$98,$86,$85,$84,$84 | |||
| 9E33 | DEFB $84,$84,$84,$84,$84,$84,$64,$9C | |||
| 9E3B | DEFB $86,$81,$80,$80,$80,$80,$80,$80 | |||
